What we supply and install

LED screens

Indoor, outdoor and video walls

Interactive panels

4K touch, 55″ to 110″

Video conferencing

Cameras, webcams, speakerphone

Displays and kiosks

Totems, kiosks, wall-mount

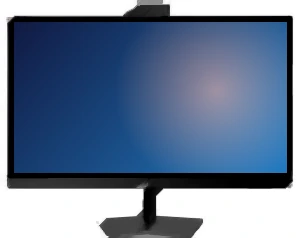

All-in-one PCs

21″ to 30″, touch or non-touch

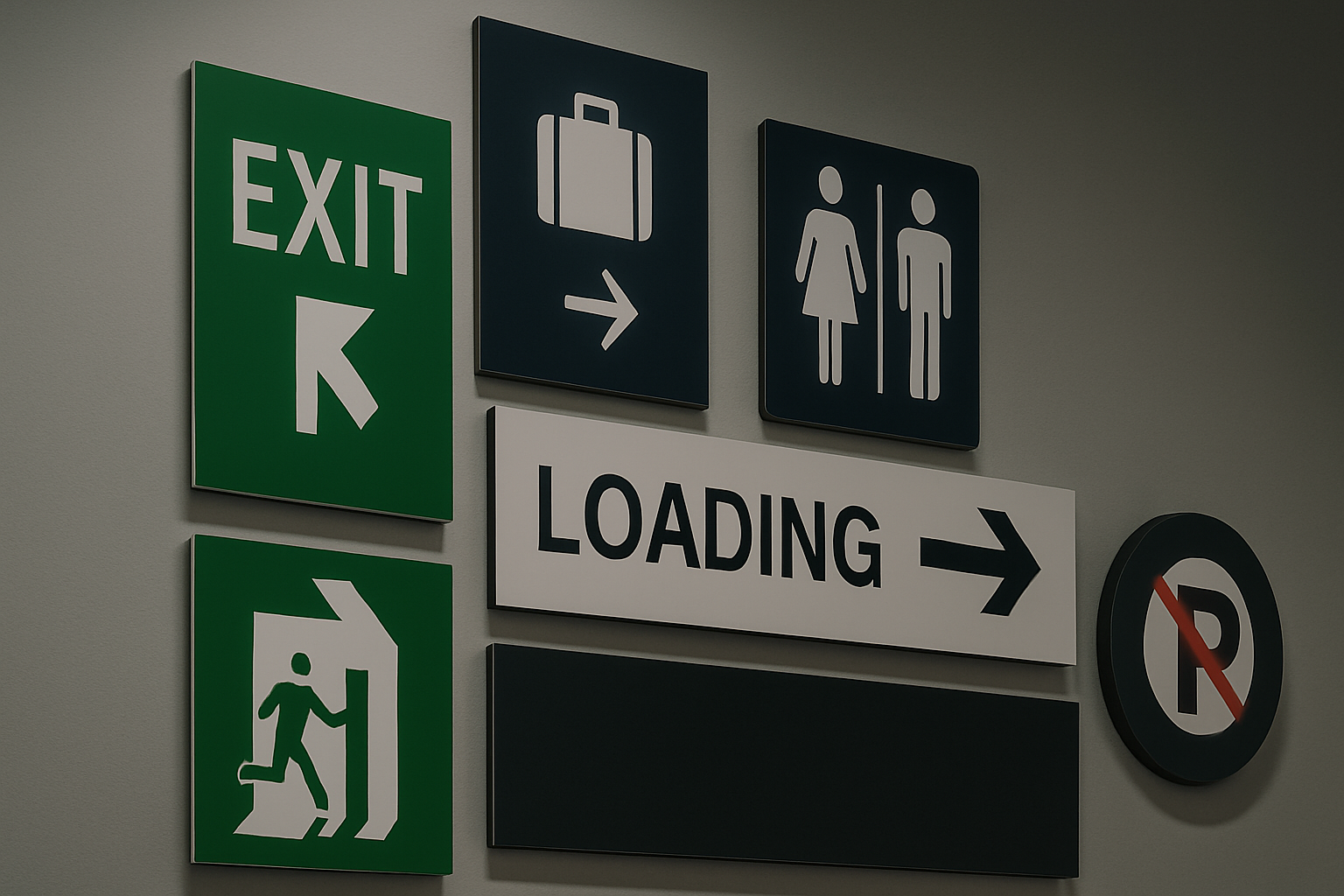

Signage

Channel letters, pylons, wayfinding

The full range in one PDF.

Download catalogue

LED display screens

Pixel pitch is the distance between pixels. A smaller pitch packs more pixels into the same area, so the picture holds up from closer. Pick a model to see the difference.

A 320 × 160 mm patch of screen. 204 × 102 pixels, best viewed from 1.56 m or further.

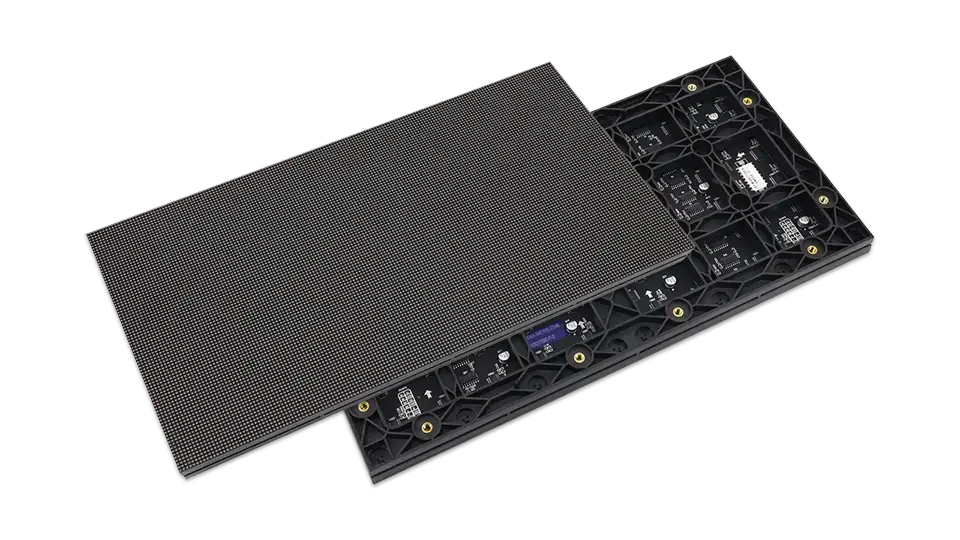

Indoor fine-pitch LED module, front and back
Model
IS 1.56 indoor
Pixel pitch
1.56 mm
Brightness
600–800 cd/m²
Pixel density
409,600 dots/m²
View full specifications
Technical parameters by model
ParameterIS 1.56 indoorIS 2.5 indoorOS 4 outdoor
Pixel pitch1.56 mm2.5 mm4 mm
Pixel density409,600 dots/m²160,000 dots/m²62,500 dots/m²
Module size250 × 250 mm320 × 160 × 15 mm320 × 160 × 18 mm
Module resolution160 × 160128 × 6480 × 40
LED lampSMD1212SMD2121SMD1921
Pixel configuration1R1G1B1R1G1B1R1G1B
Brightness600–800 cd/m²> 600 cd/m²> 5,500 nits
Viewing distance> 1.56 m> 2.5 m> 4 m
Viewing angle160° H / 160° V150° H / 150° V140° H / 130° V
Refresh rate3,840 Hz3,840 Hz3,840 Hz
Grey scale14 bit12–14 bit13–14 bit
Drive mode1/40 scan, constant current1/32 scan, constant current1/10 scan, constant current
Control modeSynchronousSynchronousSynchronous
Working voltageDC 4.2–5 VDC 4.2–5 VDC 4.5–5 V
Max power per m²< 500 W< 341.8 W< 850 W
EnvironmentIndoorIndoorOutdoor
Working temperature10 to 40 °C10 to 40 °C20 to 50 °C
Working humidity10–65% RH, no condensation10–65% RH, no condensation10–90% RH
MTBF> 10,000 hours> 10,000 hours> 10,000 hours
Blind spot rate< 1 / 10,000< 1 / 10,000< 1 / 10,000
Attenuation after 3 years< 15%< 15%< 15%
Screen flatness< 1 mm/m²< 1 mm/m²< 1 mm/m²

LED video walls

For larger or shaped screens we build from die-cast cabinets instead of loose modules. Cabinets lock together quickly and hold a flat or curved face.

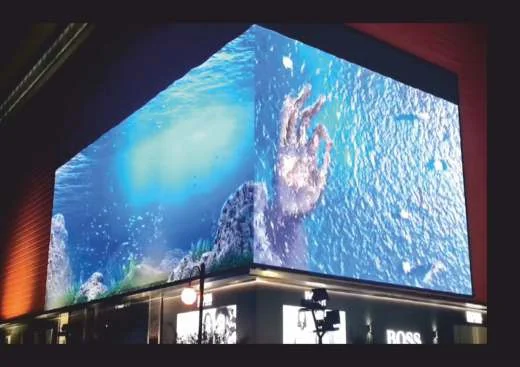

Corner LED video wall on a building showing a 3D wave effect

Immersive video wall

High-brightness cabinets that wrap around a corner or a room, used for naked-eye 3D content, experience zones and virtual production backdrops.

  • P1.5
  • P1.9
  • P2.6
  • P2.9
  • P3.9
Brightness
2,000 nits or more
Refresh rate
7,680 Hz
Grey scale
16 bit
IP grade
IP31
View specifications by pixel pitch
Immersive video wall, by pixel pitch
ParameterP1.5P1.9P2.6P2.9P3.9
LED lampSMD1212SMD1515SMD1515SMD2020SMD2020
Pixel density (dots/m²)409,600262,144147,456112,89665,536
Brightness2,000 nits or more2,000 nits or more2,000 nits or more2,500 nits or more2,500 nits or more
Module size250 × 250 mm250 × 250 mm250 × 500 mm250 × 500 mm250 × 500 mm
Module resolution160 × 160128 × 12896 × 19284 × 16864 × 128
Cabinet size500 × 500 mm or more500 × 500 mm or more500 × 500 mm or more500 × 1000 mm or more500 × 1000 mm or more
Cabinet weightDie-cast magnesium, 8.5 kg or 13.5 kg
Power consumption450–500 W/m²
Refresh rate7,680 Hz
Grey scale16 bit
IP gradeIP31

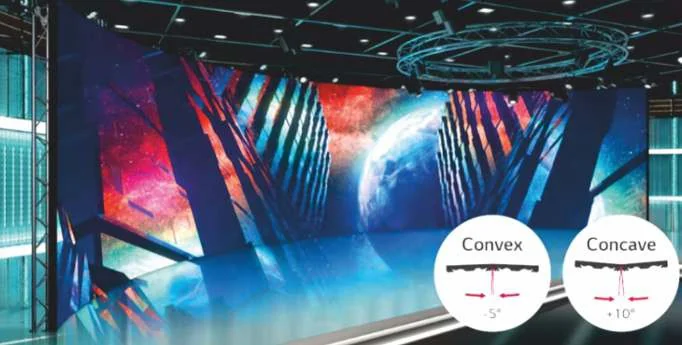

Curved LED video wall on a stage, with diagrams of convex and concave cabinet joints

Concave and convex video wall

Cabinets with angled locks that curve inward or outward, for stage backdrops, columns, control rooms and showroom features.

  • P1.56
  • P1.89
  • P2.6
  • P2.97
  • P3.91
Brightness
600–800 nits
Refresh rate
3,840 Hz
Cabinet
500 × 1000 mm, 9.7 kg
IP rating
IP20
View specifications by pixel pitch
Curved video wall, by pixel pitch
ParameterP1.56P1.89P2.6P2.97P3.91
LED lampSMD1212SMD1515SMD2020SMD2020SMD2020
Pixel density (dots/m²)409,600278,784147,456112,89665,536
Module resolution160 × 160132 × 13296 × 9684 × 8464 × 64
Cabinet resolution320 × 640264 × 528192 × 384168 × 336128 × 256
Scan mode1/401/441/321/281/22
Module size250 × 250 mm
Cabinet size500 × 1000 mm, also 500 × 500 mm
Cabinet weight9.7 kg
Brightness600–800 nits
Viewing angle160° H / 160° V
Refresh rate3,840 Hz
Grey scale14 bit
Colours16.7 million
Max power consumption500 W/m²
IP ratingIP20

Need a different pitch, a transparent screen, or a rental setup? Tell us the size and location and we will quote against your requirement.

Interactive flat panels

A touch screen that replaces the projector and whiteboard. Write on it, cast to it, or run a full Windows PC from the slot at the back.

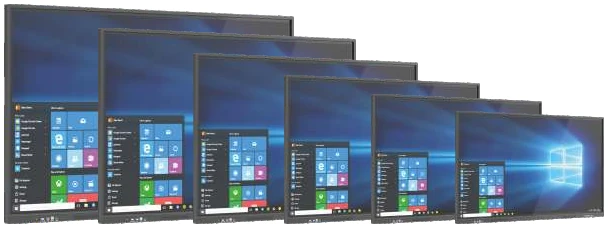

ARP interactive flat panels in six sizes

ARP E800 / Platinum Series

A 4K panel with infrared touch for classrooms, training halls and meeting rooms, in six screen sizes.

Resolution
4K UHD, 3840 × 2160
Touch
Infrared, 10 or 20 points
System
Android 13 / 14
Brightness
350–450 cd/m²

Models in the series

  • 55″1258 × 84 × 744 mm26.5 kg · 150 W
  • 65″1515 × 98 × 945 mm43.5 kg · 200 W
  • 75″1745 × 110 × 1070 mm62.4 kg · 300 W
  • 86″1990 × 114 × 1213 mm82.8 kg · 400 W
  • 98″2285 × 118 × 1365 mm130 kg · 550 W
  • 110″Same series featuresSize and weight on request
View full specifications
Panel
A grade, LG / BOE / AUO / CSOT
Aspect ratio
16:9
Colours
16.7 million
Contrast
4000:1 / 5000:1
Response time
3 / 5 ms
Viewing angle
178° / 178°
Processor
Quad-core or octa-core
Graphics
Mali G51 MP2 / G53 MP2
RAM
4 / 8 / 16 GB
Storage
32 / 64 / 128 / 256 GB
Wireless
Wi-Fi, Bluetooth
Camera and mic
Optional, built in
Bonding
Zero bonding
Writes with
Finger, pen, any opaque object
Touch durability
Over 60 million touches
Speakers
2 × 20 W
Panel life
60,000 hours
Working temperature
0 to 60 °C
By screen size
Parameter55″65″75″86″98″110″
Power consumption150 W200 W300 W400 W550 WOn request
Net weight26.5 kg43.5 kg62.4 kg82.8 kg130 kg
Gross weight34 kg54.65 kg80 kg100.7 kg180 kg
Product size (L × W × H)1258 × 84 × 744 mm1515 × 98 × 945 mm1745 × 110 × 1070 mm1990 × 114 × 1213 mm2285 × 118 × 1365 mm
Packed size (L × W × H)1355 × 200 × 885 mm1660 × 245 × 1045 mm1880 × 280 × 1160 mm2140 × 280 × 1340 mm2350 × 350 × 1550 mm
Ports4 × USB, 2 × HDMI, RJ45, RS232, touch USB, mic / earphone, SPDIF. VGA on 65″ and above. HDMI out optional.
Supply100–240 V AC, 50/60 Hz. Standby under 0.5 W.
In the boxRemote, power cord, touch pen, Wi-Fi antenna, batteries

Options

Slot-in Windows PC (OPS)
An 80-pin OPS computer with an Intel i5, i7 or i9 processor, 4 to 32 GB RAM, SSD or hard-disk storage and Windows 10 Pro or 11 Pro.
Built-in camera and microphone
For recording lessons and joining online classes or meetings without a separate camera.

Video conferencing

Cameras and audio that plug into a PC, laptop or interactive panel over USB and work with the common meeting apps.

ARP-VHD12X PTZ conferencing camera

ARP-VHD12X

4K PTZ camera

Pan-tilt-zoom camera for larger rooms and lecture halls.

Video
4K at 30 fps
Zoom
12× optical
Sensor
Sony IMX415, 8.29 MP
Outputs
HDMI, USB-C, Ethernet
View specifications
Lens
3.9–46.8 mm
Aperture
F1.6–F9.6
Horizontal view
70.82° wide to 6.48° tele
Diagonal view
78.58° wide to 7.42° tele
Pan
±175°, 0.1–80°/s
Tilt
−90° to +90°, 0.1–60°/s
Presets
255, 10 on the remote
Focus and exposure
Auto or manual
Noise reduction
2D and 3D
Signal-to-noise
> 50 dB
Control
RS232, RS485, USB (UVC 1.1)
Network
10/100 Ethernet
Streaming
RTSP, RTMP, ONVIF, GB28181
Works with
Windows 10/11, Android, macOS 10.10+
Power
DC 12 V, 13 W max
Working temperature
−10 to +60 °C
Size
171.6 × 192.6 × 171.6 mm
Weight
1.43 kg
In the box
USB cable, power adapter, wall mount, manual
ARP-M6BEX speakerphone with extension microphones

ARP-M6BEX

Speakerphone

Microphone and speaker for meetings of 8 to 10 people.

Microphones
8-mic array, 360°
Pick-up radius
8 m
Connection
USB, Bluetooth, dongle
Battery
Up to 13 hours
View specifications
Room size
About 20 m²
Processing
Noise reduction, echo cancellation
Battery capacity
8,000 mAh lithium
Charge time
3 hours
Works with
Windows 7 to 11, macOS 10.9+, ChromeOS, Linux, Android, iOS

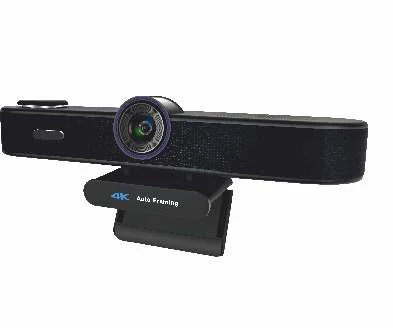

ARP-VA1000 portable conferencing camera bar

ARP-VA1000

Portable 4K camera

Camera, microphones and speaker in one bar for small meeting rooms.

Video
4K at 30 fps
Horizontal view
80°
Framing
Automatic
Audio
2 mics and speaker
View specifications
Zoom
4× digital, ePTZ by remote
Microphones
Omnidirectional, hands-free
Connection
USB plug and play
Works with
PCs, laptops, interactive flat panels
Apps
Most video conferencing apps and cloud services

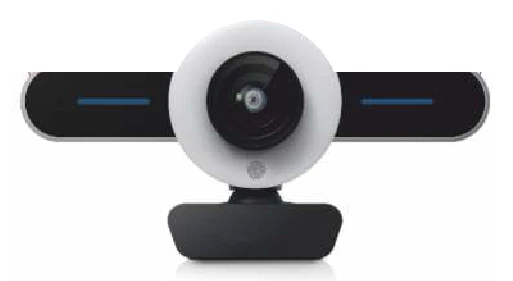

ARP-T200 webcam with ring light

ARP-T200

Autofocus webcam

For meeting rooms, individual calls and online streaming.

Video
1080p at 30 fps
Autofocus
0.7 seconds
Field of view
70°, no distortion
Mic range
2–5 m
View specifications
Microphone
Built in, high sensitivity
Connection
USB plug and play
Works with
PCs, laptops, interactive flat panels

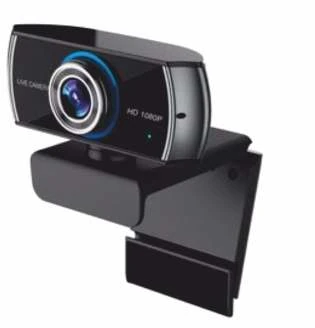

ARP-604 1080p USB webcam

ARP-604

1080p webcam

Clip-on camera for one person at a desk.

Video
1080p (2 MP) at 30 fps
Viewing angle
65°
Microphone
Noise cancelling, 2 m
Connection
USB 2.0, 150 cm cable
View specifications
Sensor
CMOS
Resolution
1920 × 1080
Photo format
BMP, JPG
Best viewing distance
0.5–1.5 m
Works with
PCs, laptops, interactive flat panels

Digital displays and kiosks

Finished display units, kiosks and all-in-one PCs that arrive ready to mount and run.

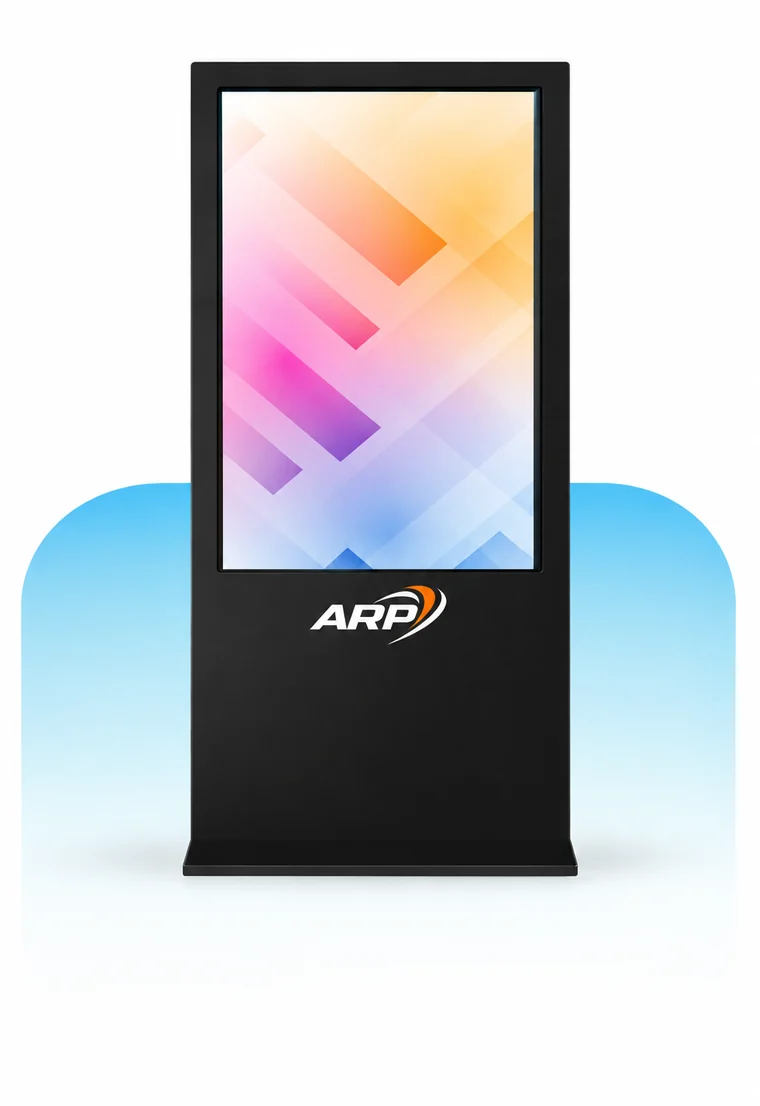

ARP slim-line floor-standing totem display

Slim-line totem display

A floor-standing portrait screen for lobbies, showrooms, hospital reception areas and retail floors. Built for round-the-clock running.

ModelScreenBrightnessPower
ARP2G-32S32″400 nits55 W
ARP2G-43S43″500 nits121 W
ARP2G-55S55″500 nits154 W
Resolution
1920 × 1080
Operating hours
24 / 7
Inputs
HDMI, USB, Wi-Fi
Warranty
3 years
View specifications
Viewing angle
178° / 178°
System
Tizen 7.0
Ports
USB 2.0, HDMI 2.0
Audio out
Stereo mini jack
Glass
Tempered
Playback
Built-in CMS, USB loop play
Working temp
0 to 40 °C
Supply
100–240 V AC, 50 Hz

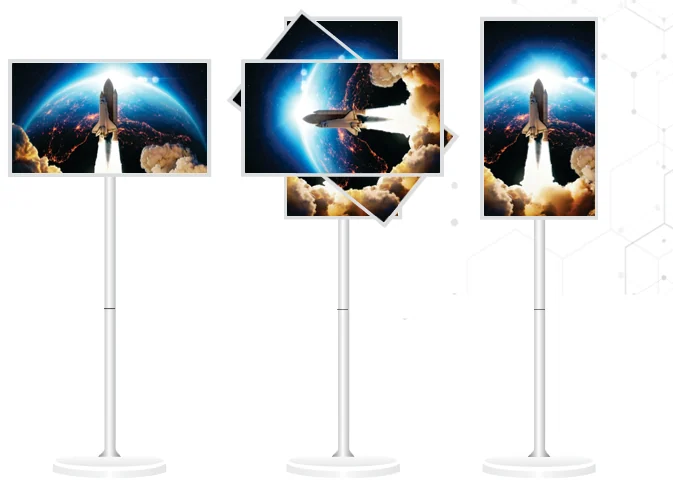

32 inch smart movable display on a stand, shown in landscape, rotating and portrait positions

32″ smart movable display

A touch screen on a wheeled stand that rotates between landscape and portrait. Useful for meeting rooms, classrooms, counters and exhibition stalls.

  • Model 2G32D
Resolution
1920 × 1080
Touch
10-point capacitive
Memory
8 GB RAM, 128 GB
Camera
13 MP built in
View specifications
Brightness
300 nits
Viewing angle
178° / 178°
Contrast
1000:1
Colours
16.7 million, 72% NTSC
Refresh
60 Hz
Processor
MT8788 octa-core
Graphics
Mali-G72 MP3
System
Android
Wireless
Wi-Fi 2.4 / 5G, Bluetooth 4.2
Ports
HDMI in, 2 × USB 2.0, Type-C
Touch accuracy
2 mm or better
Touch response
10 ms or faster
Glass
Anti-glare tempered
Body
White, ABS frame
Size on stand
733 × 1380 × 400 mm
Net weight
20 kg
TODAY'S MENU Masala dosa₹90 Paneer wrap₹120 Veg thali₹160 Filter coffee₹40 Fresh every day · Open 8 am to 10 pm NOW SERVING A 042 Counter 3 A 043Counter 1 A 044Counter 2 B 017Counter 4 FESTIVE OFFER 30% OFF This week in store Menu boards Queue displays Advertising

Wall-mount display

A slim Full HD panel for menu boards, queue and notice displays, and in-store advertising. Plays a loop straight from a USB drive.

  • 32″
  • 43″
  • 55″
  • 85″
Resolution
1920 × 1080
Brightness
270–350 nits
Viewing angle
178° / 178°
Max power
75 W
View specifications
System
Android 9.0
Processor
Quad-core A53, 1.2 GHz
Graphics
Mali-450 MP4
RAM
1 to 4 GB
Storage
8 to 16 GB
Operating hours
12 / 7
Screen coating
Anti-glare
Playback
Built-in CMS, USB loop play
Working temp
0 to 40 °C
Supply
100–240 V AC, 50 Hz
Warranty
1 year

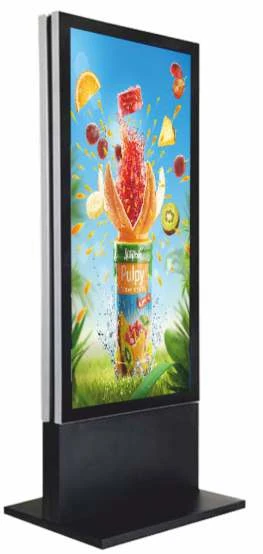

ARP floor-standing kiosk showing an advertisement

Floor-standing kiosk

A K-type kiosk for indoor or outdoor use, with or without touch. Used for wayfinding, self-service, visitor information and advertising.

  • 32″
  • 43″
  • 55″
  • 65″
  • 75″
Resolution
1920 × 1080
Brightness
400 cd/m²
Touch
IR or capacitive, 10 points
System
Android 12
View specifications
Contrast
4500:1
Colours
1.07 billion (10-bit)
Processor
RK3288 quad-core
Graphics
Mali-T764
RAM
2 / 3 / 4 GB
Storage
8 / 16 / 32 GB
Touch accuracy
±1.5 mm
Touch response
5 ms
Speakers
2 × 10 W
Glass
4 mm tempered
Body
Aluminium frame, metal back
Connections
2 × USB 2.0, RJ45, Wi-Fi
Supply
100–240 V AC, 50/60 Hz
Power
115 W or less, 0.5 W standby
Working life
Over 40,000 hours
ARP all-in-one desktop PC

All-in-one desktop PC

A Windows computer built into the monitor, with camera, microphones and speakers included. Supplied with keyboard and mouse, touch or non-touch.

  • 21″
  • 24″
  • 27″
  • 30″
Processor
Intel i5 / i7, 12th gen or later
RAM
4 to 32 GB
System
Windows 10 Pro / 11 Pro
Touch
Optional, 10-point capacitive
View specifications
Model
ARP AIO
Resolution
1920 × 1080 or 3840 × 2160
Display
Flat or curved IPS, 16:9
CPU speed
3.5–4.0 GHz, 4 cores or more
SSD
128 GB to 1 TB
Hard disk
500 GB to 1 TB
Graphics
Intel HD
Network
100 / 1000 Mbps
Wireless
Wi-Fi 2.4 / 5 GHz, Bluetooth
Camera
2, 8 or 13 MP
Microphone
6-mic array
Speakers
2 × 6, 8 or 10 W
Ports
HDMI, VGA, 6 × USB, audio in and out
Battery backup
45–60 minutes
Body
Mg-Al alloy base, ABS shell
Colours
Silver or black
Optional software
Microsoft Office, antivirus

Also in the range

Interactive touch screens
10-point capacitive touch for wayfinding and visitor information in malls, museums and trade shows.
Outdoor high-brightness displays
IP65 weatherproof, sunlight-readable units with built-in cooling for storefronts and bus stations.

Comparing options? Download the catalogue and share it with your team.

Download catalogue

Signage

The same letters read very differently depending on how they are lit. Switch between the types we fabricate.

Light shines through an acrylic face on a metal letter. The most readable option from a distance, day or night.

What we make

  • Channel letters, LED and non-lit
  • ACP, acrylic and metal signs
  • Pylon and totem signs
  • Wayfinding and safety signage
  • Hospital, hotel and retail signage
  • Reception and parking signs
  • Vehicle branding and printing

Materials and finishes

  • ACP, acrylic, polycarbonate, PVC
  • Aluminium, stainless steel, MS / GI, brass
  • Vinyl, flex, glass, wood
  • Powder coating and PU paint
  • Brushed, mirror and metallic finishes
  • Custom colours

Where we install

  • Indoor and outdoor
  • Wall, pole, ceiling, roof, freestanding
  • High-rise and work at height
  • Civil foundation for pylons
  • Electrical connection
  • Dismantling and reinstallation

Industries and applications

Where our screens, panels and signs are put to work.

  • Government

    Public information screens, control-room video walls, office and building signage. Supply through GeM.

  • Education

    Interactive panels for classrooms, lecture-hall cameras, campus notice displays and wayfinding.

  • Corporate

    Boardroom video walls, meeting-room conferencing, reception displays and office signage.

  • Healthcare

    Queue and token displays, wayfinding, reception and ward signage, lobby information screens.

  • Retail and hospitality

    Storefront LED screens, menu boards, in-store advertising displays, kiosks and facade signage.

  • Industrial

    Production and safety dashboards on large screens, plant and gate signage, safety and warning signs.

One team, from survey to switch-on

We do not hand the job to a different contractor at each stage. The same team carries your project through all eight steps.

  1. We measure the location, viewing distances, power and structure.

  2. Screen size, pitch, layout and structural drawings for your approval.

  3. Frames, supports, cabinets and sign bodies are made and finished.

  4. Mounting on wall, pole, roof or floor, including work at height.

  5. Power distribution, cabling and connection.

  6. Controller setup and loading your content.

  7. Every module, joint and connection is checked before handover.

  8. Switch-on and handover to your team.

Quality checks along the way

  • Material inspection
  • Fabrication checks
  • Electrical and LED testing
  • Dimensional checks
  • Waterproofing
  • Pre-dispatch QC
  • Site inspection

Company details

For vendor registration and tender verification. Certificates are shared on request.

Legal name
ARP Engineering Solutions
Constitution
Partnership firm
GSTIN
09ACHFA9226F1ZB
Udyam registration
UDYAM-UP-29-0181519
MSME category
Micro enterprise
GeM
Registered seller
PAN
Shared on request
Area of operation
All India
Registered office
192, Satyam Enclave, GT Road, Sahibabad, Ghaziabad, Uttar Pradesh 201010
Download product catalogue (PDF)

Request a quotation

Tell us what you need and where. Attach a BOQ or tender document if you have one, or ask for a site visit.
